The tetra hardware is based on the Broadcom BCM23550 (referred to as java in the device tree) chipset.

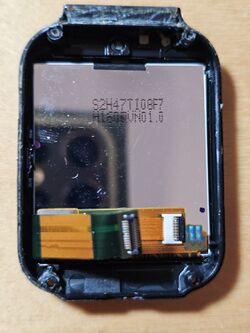

Front

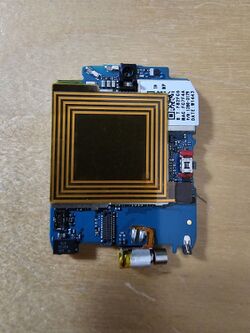

The front of the PCB is covered by a flexible PCB antenna used for NFC. This is connected to the PCB via a U.FL connector.

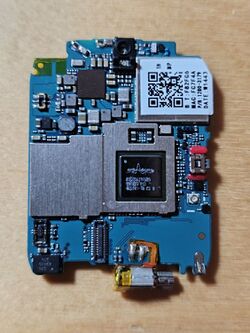

Removing the NFC antenna reveals the Broadcom SoC and on its left a shield on top of the memory.
The shield with a QR code is covering the BCM43341 Bluetooth/WiFi chip.

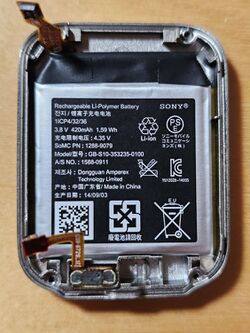

Back

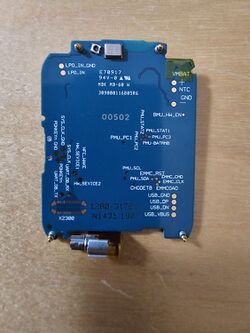

The back of the PCB has testpoints, pogo pins and space for an unpopulated connector.
